ER COLLET CHUCK

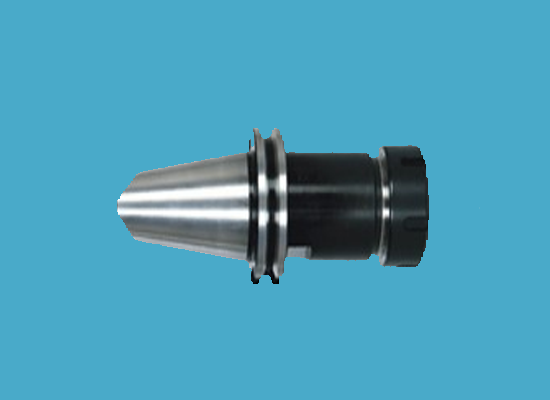

CAT/SK ADAPTERS

CAT (CAT 40) and SK (SK40) adapters for ER collet chucks are integral components in CNC machining, providing a bridge between machine tool spindles and ER collet systems.

FM SL MT

Shank Taper	Descriptions	Suitable Collet	L1 (mm)	L (mm)	ØD (mm)	NUT
CAT 40	CAT40-ER16-70L	ER 16	70	68.24	28	A (Hex. Type)
	CAT40-ER16-100L	ER 16	100	68.24	28	A (Hex. Type)
	CAT40-ER16-150L	ER 16	150	68.24	28	A (Hex. Type)
	CAT40-ER20-70L	ER 20	70	68.24	34	A (Hex. Type)
	CAT40-ER20-100L	ER 20	100	68.24	34	A (Hex. Type)
	CAT40-ER20-150L	ER 20	150	68.24	34	A (Hex. Type)
	CAT40-ER25-70L	ER 25	70	68.24	42	UM (Round Type)
	CAT40-ER25-100L	ER 25	100	68.24	42	UM (Round Type)
	CAT40-ER25-150L	ER 25	150	68.24	42	UM (Round Type)
	CAT40-ER32-70L	ER 32	70	68.24	50	UM (Round Type)
	CAT40-ER32-100L	ER 32	100	68.24	50	UM (Round Type)
	CAT40-ER32-150L	ER 32	150	68.24	50	UM (Round Type)
	CAT40-ER40-70L	ER 40	70	68.24	63	UM (Round Type)
	CAT40-ER40-100L	ER 40	100	68.24	63	UM (Round Type)
	CAT40-ER40-150L	ER 40	150	68.24	63	UM (Round Type)
